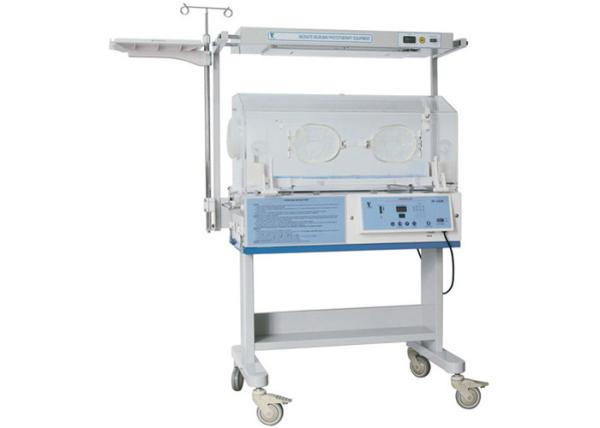

Hospital Newborn Infant Incubator Incubator With Neonate Bilirubin Phototherapy
Model : MCF-100B

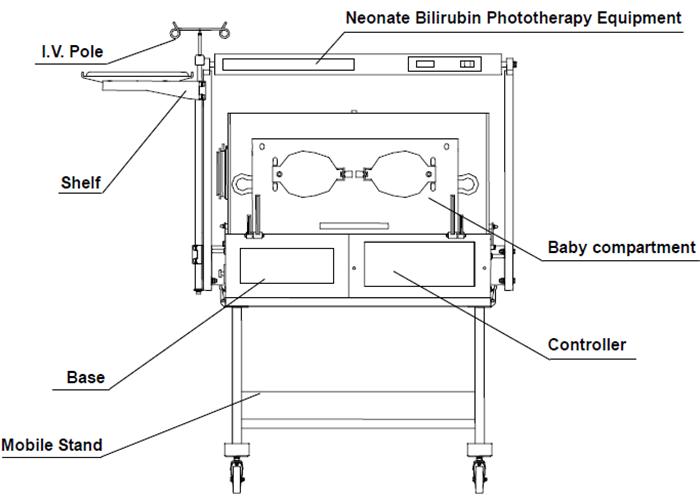

Standard Configuration
The hood, the base, the controller, I.V pole, shelf.
Neonate bilirubin phototherapy equipment
Optional Configuration of hospital baby incubator
Skin temperature control and disposable skin temoerature sensor.
DC motor. >37°C override mode
The light source of the fixed neonate bilirubin
phototherapy equipment is LED bulb
Specification of the Infant Incubator
| Power supply | AC22-230V/50Hz or AC110V-120V/50-60Hz |
| Max Power Output | 850VA |
| Mode of control | Air mode control by micro-computer |
| Air temperature control range | 25°C - 37°C |
| Temperature Variability | <= 0.5°C |
| Temperature Uniformity | <= 0.8°C |
| Noise inside hood | <=55Db (A) (Environment noise<=45dB (A)) |
| Optional with DC motor. Noise inside hood | <=45Db (A) (Environment noise<=35dB (A)) |
| Failure alarm | over temerature alarm, deviation alarm, sensor failure alarm, fan motor alarm, power failure alarm, system alarm and so on |
Environmental Temperature
Operating range: 20°C ~ 30°C
(Set temperature should be higher 3°C than the environment temperature)
Ambient air movement rate: <0.3m/s
Product packing
| Packing | each unit is packed into one carton |
| Dimension | 108.5cm*64cm*107.5cm |
| Gross Weight | 83kg |
set temperature and air temperature are displayed separately;
Tri-safety over-temp protection
Double CPU control system. Isolated over heating cutoff device. Humidity by natrual way.
With self-checking function, various failt fault faiture alarms
This Pediatric Incubator has temperature data storage function. RS-232 connector.
Neonate bilirubin phototherapy equipment
