Electronically Operating Room Equipment Anesthesia System TFT-LCD Display

Electronically Operating Room Equipment Anesthesia System TFT-LCD Display

Model:MCA-301

Specification Of Surgical Anesthesia:

Specifications

1. Anesthesia Machine
2. VT MV BPM Paw FiO2 Lung compliance Morniting
3. 8.4 Inch LCD display
4. VCN SIGH SIMV Stand-by Manua

Main Feature

1. Applied for closed, semi-closed, semi-open inhalation anesthesia, controlled or assisted ventilation, monitoring and

display patients’ ventilation parameters

2. Applied for adult and pediatric

3. Integrated anesthetic ventilation system, APL security air relief valve is available

4. Vaporizers: 2.

Advanced temperature, flow and pressure compensation technology, Isofurane, Enfurance, Halothane and Sevoflurance as per option.

5. 8.4” TFT-LCD display screen

Main Specification:

Type: Electronically controlled, Pneumatic driven

Patient spectrum: Pediatric to bariatric

Mode of ventilation: VCN, SIGH, SIMV, Stand-by, Manual, PEEP(Optional)

Hypoxic guard system: N2O cut-off valve, O2 concentration no less than 25%

Safety valve: <12.5kpa

Monitoring: VT, MV, BPM, Paw, FiO2, Lung compliance

Waveform: Pressure-time, flow-time, pressure-volume loop, volume-time (Optional), flow-volume loop (Optional)

Power: AC 220V±10%, 50Hz±2%, built-in battery support

Gas: O2, N2O, air (Optional)

Alarm: Optimal multi-class alarm unit, VT beyond limitation, upper and lower limitation of ventilation, upper and lower limitation of ventilation, upper and lower limitation of airway pressure, asphyxiation, current failure, gas source hypotonic, gas circuit abnormity, upper and lower limitation of CO2 concentration (Optional)

Prompt and protection: Prompt for parameter limitations, protection for unreasonable parameter setting.

Surgical Operating Lights

Shadowless Operation Lamp

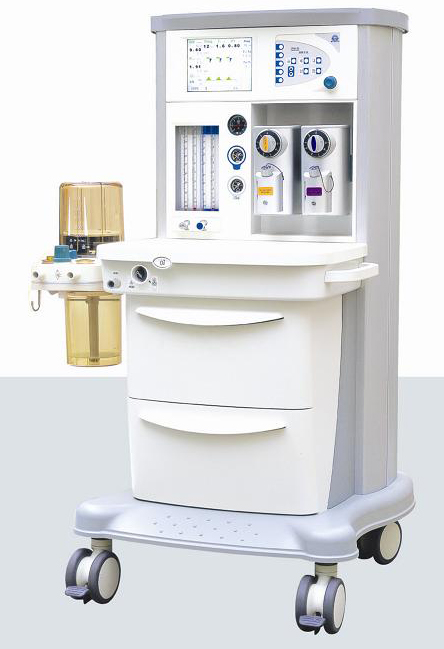

Electronically Operating Room Equipment Anesthesia System TFT-LCD Display Images
