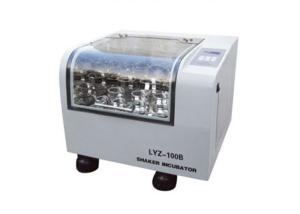

Medical Laboratory Equipment Integrating Constant Temperature Table
Model:LYZ-100B,LYZ-200B
the instrument features
Integrating constant temperature incubator and the oscillator, saving space covers an area of small, features less investment, more large special glass Windows, luxurious and beautiful shape.
Shell for the production of ABS engineering plastics, mirror stainless steel cavity components.
Large-screen backlit LCD display, can show the temperature and velocity respectively.
The operation parameters memory function, avoid cumbersome operation and password lock, prevent man-made wrong operation.
Equipped with call back function, is not affected by the power gap, equipment can be set automatically according to the original program.
Has opened the door stop protection device, protect the safety of objects and is equipped with high-strength gas drag link, open the door.
Brushless dc motor, more stable, more reliable.
Equipped with leakage protector
Technical parameters
|
Product model
|
LYZ-103B |
LYZ-100B |
LYZ-200B |
|
Rotation frequency
|
20-300 |
20-300 |
20-300 |
|
Frequency accuracy
|
±1 |
|
Shimmy amplitude
|
Φ26 |
|
The standard configuration
|
100ml×9 |
50ml×4, 100ml×4,
250ml×3, 500ml×3 |
50ml×5, 100ml×5 , 250ml×4, 500ml×3 |
|
The maximum capacity
|
50ml×12, 100ml×9 |
50ml×20, 100ml×16, 250ml×12,500ml×9 |
100ml×20,250ml×16
500ml×12,1000mL×5
|
|
The pallet size
|
295×245 |
300×250 |
450×410 |
|
Timing range
|
0-9999min |
|
Operating temperature
|
+5～60
Room temperature
|
+5～60
Room temperature
|
4～60
(Refrigeration type)
|
|
Temperature control precision
|
±0.1 |
±0.1 |
±0.1 |
|
Temperature uniformity
|
±1 |
±1 |
±1 |
|
Digital display mode
|
LCD |
|
The tray number
|
1 |
1 |
1 |
|
Overall dimension
|
440×410×390 |
600×580×510 |
780×682×560 |
|
Packing size
|
580×530×540 |
740×700×660 |
920×800×610 |
|
The net weight/gross weight
|
31/41 |
72/88 |
100/125 |
|
volume
|
320×295×190 |
440×405×270 |
480×450×320 |
|
Power
|
220 |
320 |
580 |
|
The power supply
|
AC 220～240V 50～60Hz |
