15 Inch LCD Laptop Ultrasound Scanner , Portable B Ultrasound Scanner For Test Pregnancy

15in LCD Laptop Portable B Ultrasound Scanner for Test Pregnancy

Features of Laptop Portable B Ultrasound Scanner

- 15 inch LCD screen
- Full digital imaging technology, crystal-clear Image
- Pretty and light
- 8 segment TGC
- Broadband multi-frequency probes
- 2 probe connector
- Silica gel backlight gravure laser keyboard
- USB flash disk large volume image storage
- Cine loop
- Built-in battery(can work more than 5 hours)
- High Cost-effective

Specifications

- Display size: 15 inch LCD screen
- Working frequency: 2.0MHz~10MHz
- Display mode: B, B+B, B+M, M, 4B
- Scanning range: Convex array 60°~150°
- Amplification factor:1.0, 1.2, 1.5,2.0
- Gain control: 8 segments TGC and overall gain can be adjusted respectively
- Image processing: 8 γ corrections, frame correlation, point correlation, line correlation,
digital filtering, digital edge enhancement and pseudo color processing, etc
- Image gray-scale: 256 levels
- Scanning line number: 512 lines/frame
- Frame rate: 30 frames/second
- Digital scanning conversion: 512×512×8 bits
- Memory: USB flash disk large volume image storage
- Conventional measurements: distance, perimeter, area, volume
- Obstetric measurement: gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC),
expected date of confinement and fetus weight, etc.
- Report function: auto make report
- Built-in battery capacity: can work more than 5 hours
- Output interface: USB port, video.
- Overall size: 362mm×340mm×60mm
- Total weight: 4Kg(with battery)

Standard configuration:
One host, one convex probe, one aluminum trunk

Optional

Ultrasound Scan Machine

Laptop Ultrasound Machine

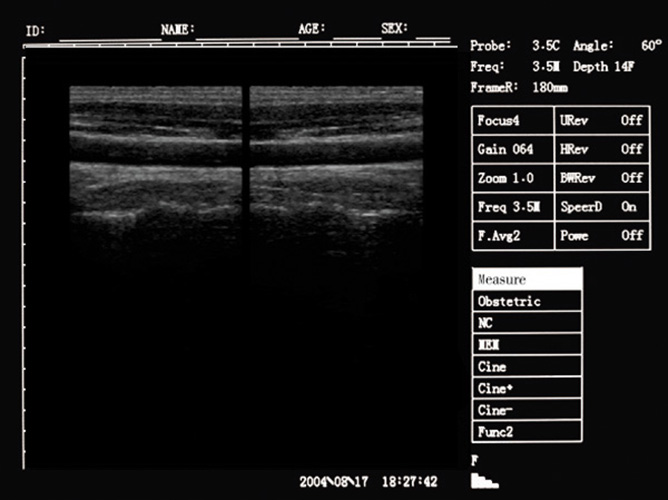

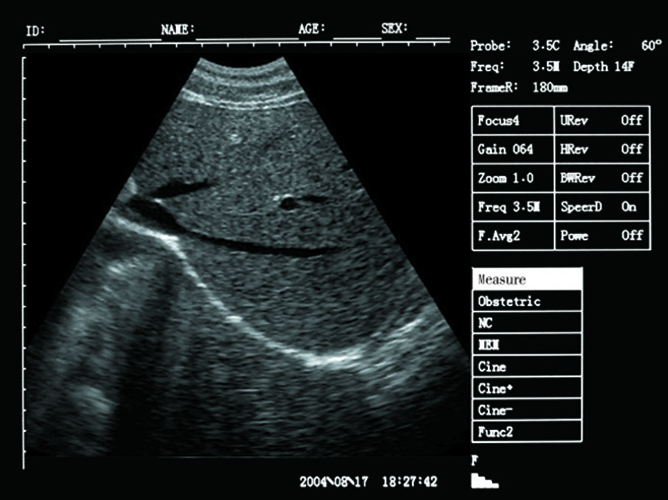

15 Inch LCD Laptop Ultrasound Scanner , Portable B Ultrasound Scanner For Test Pregnancy Images
